| Model | MX6000 Pro | MX2000 Pro | MX40 Pro | MX30 | MX20 | KU20 |
| BASIC INFO | ||||||
| Loading Capacity | 141 Million (Max) | 35.38 Million (Max) | 9 Million | 6.5 Million | 3.9 Million | 3.9 Million |

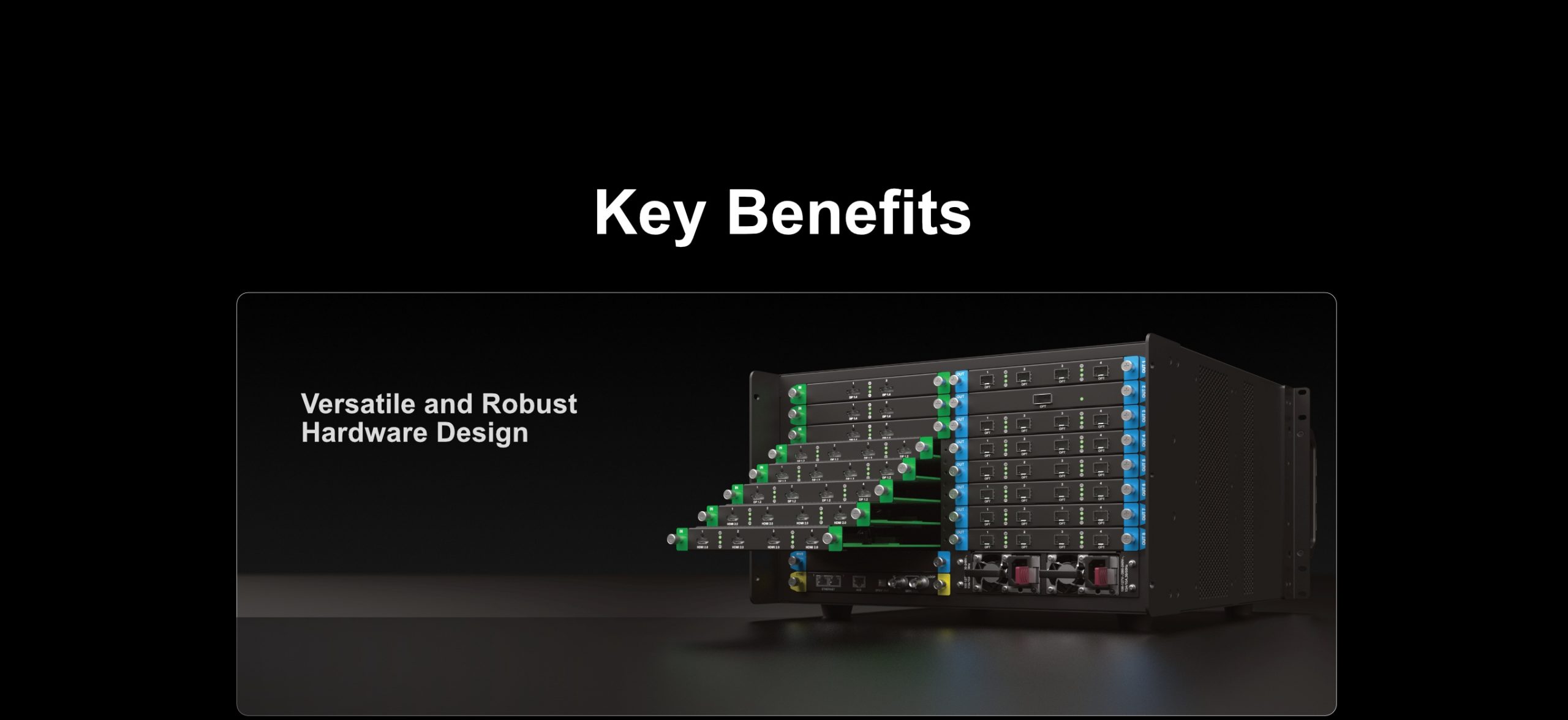

| Modular Design | ✓ | ✓ | × | × | x | x |
| Input Card Qty | 8 | 2 | N/A | N/A | N/A | N/A |
| Output Card Qty | 8 | 2 | N/A | N/A | N/A | N/A |
| Chassis Height | 6U | 2U | 2U | 2U | 1U | 1U |
| INPUTS | ||||||

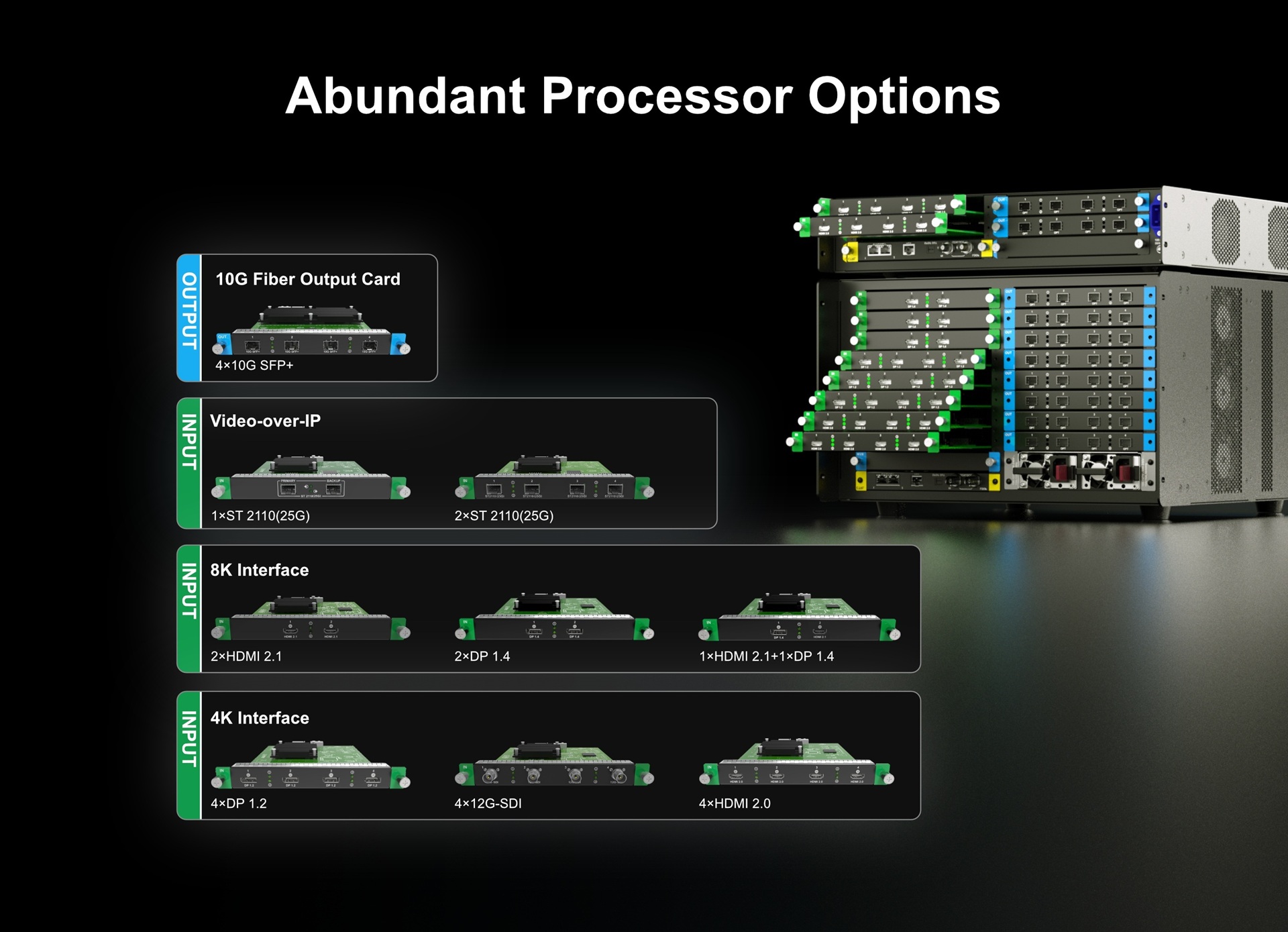

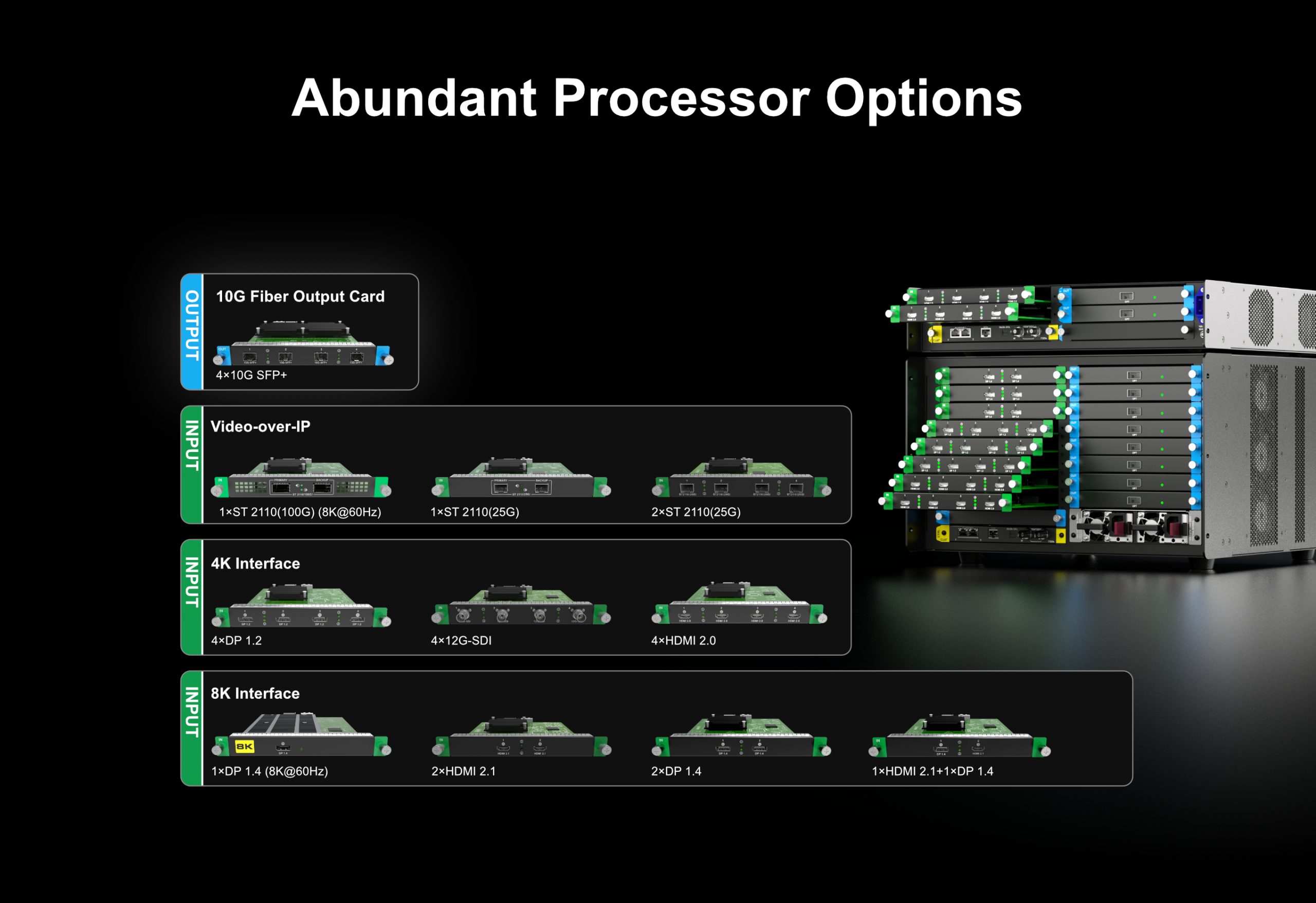

| Input Interface | Input Card Options Video-over-IP 8K Level 4K Level | 3×HDMI 2.0 1×DP 1.2 1×12G-SDI | 1×HDMI 2.0 1×HDMI 1.4 1×DP 1.1 2×3G-SDI | 2×HDMI 1.3 1×3G-SDI | 1×HDMI 1.3 (IN+LOOP) | |
| Input Bit Depth | 8bit 10bit 12bit | 8bit 10bit 12bit | 8bit 10bit 12bit | 8bit 10bit | 8bit 10bit | 8bit 10bit (Custom) |
| Max. Input Width | 16384 | 16384 | 8192 | 8192 | 3840 | 3840 |
| Max. Input Height | 16384 | 16384 | 8192 | 7680 | 2560 | 2560 |
| OUTPUTS | ||||||
| Output Interface | Output Card Options MX_4×10G Fiber Output Card | 20×1G Neutrik 4×10G OPT | 10×1G Neutrik 2×10G OPT | 6×1G Neutrik 2×10G OPT | 6×RJ45 1×10G OPT | |
| Layers | Up to 32×4K layers | Up to 8×4K lavers | 4 | 3 | 3 | 1 |
| Note: 4×4K layers per output card | ||||||
| Max. Output Width | 16384 | 16384 | 16384 | 16384 | 4096 | 4096 |
| Max. Output Height | 16384 | 16384 | 16384 | 16384 | 4096 | 4096 |
| GENLOCK | ||||||
| Genlock Type | Bi-level Tri-levell Blackburst | Bi-level Tri-levell Blackburst | Bi-level Tri-levell Blackburst | Bi-level Tri-levell Blackburst | Bi-level Tri-levell Blackburst | x |
| Lock to Reference Source | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Lock to Internal Timing | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
