The ET series supports up to 16 channels of 4K2K@60Hz frame-synchronized output,

enabling a single device to achieve 16K ultra-large screen or multiple 4K screens for pixel-by-pixel display.

The entire series covers bandwidth from 2K to 16K, perfectly adapting to various application scenarios.

Integrating powerful features such as

professional playback software, playback control computers, protocol command, and conversion devices,simplifying complexity.

It effectively addresses issues like interface compatibility and control complexity, making it easy to manage display playback control.

The ET series supports GPU hardware decoding and accelerated rendering, effectively reducing CPU usage.
It supports up to 16 channels of 4K2K@60fps decoding output, ensuring smooth high-definition video playback without lag or frame loss.

With exclusive FSD frame synchronization technology, multiple servers support cascading splicing with frame-synchronized display output.

Main-slave data synchronization ensures seamless control, enabling limitless expansion of display loads.

Multiple devices and screens can be centrally managed, offering a simple and efficient solution.

Supports HDR high dynamic range display, ensuring that the screen delivers delicate and realistic visuals even in high-brightness and low-gray areas.

It reveals more image details, enhances color expression, and restores every stunning pixel.

A customized original digital asset platform + 3D spatial positioning + ultra-clear smooth playback control,

crafting immersive creative solutions for enterprise showrooms, live studios, and other scenarios,

unlocking the imagination behind the visuals.

PAD enables visual program management through Visual Intelligent Control Platform (VICP),

the server supports Protocol Command and cloud-based options.

This allows for efficient management of the entire scene anytime and anywhere, greatly enhancing convenience of playback and control.

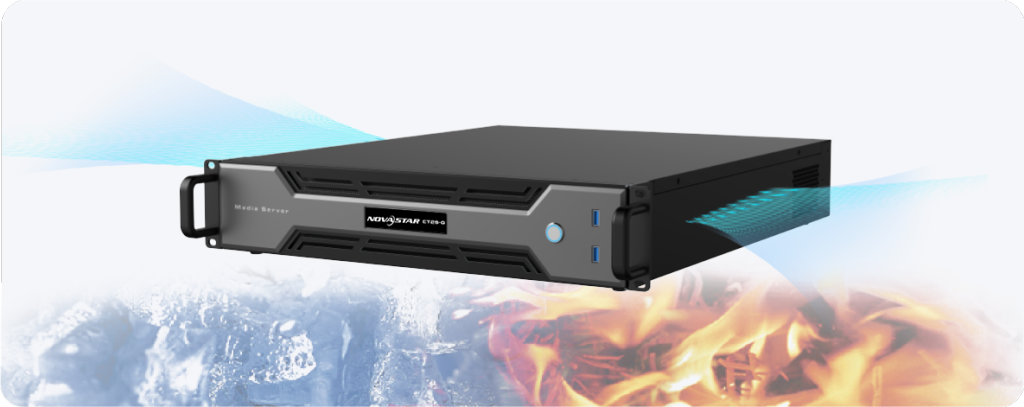

With a professional cooling design and customized CPU cooling, the device remains stable even when the ambient temperature reaches up to 60°C.
It easily passes 720 hours of stress testing, ensuring long-term, stable operation without crashes.

It features unique video encryption technology,

meanwhile, supports file exclusivity, password verification, and time-based authorization,

establishing a robust digital asset protection system to safeguard information security.

Exclusive Use | Password Verification | Expiration Date

—— More Advantages ——

EDID Lock

Multi-Screen Multi-Iayers

Edit and Playback Separation

Peripheral Control

Timeline Editing

Projection Blending

Dolby Atmos Sound

Output Split and Reorganization

Product Model	ET1S-G	ET2S-G	ET4S-G(P2)	ET4S-G(A4)	ET16S-G(2A4)	ET16S-G(3A4)
Chassis	1U	2U	4U		4U
Memory Size	16G（DDR4）	16G (DDR4)	32G (DDR4)		64G (DDR4)	128G (DDR4)
CPU	AMD Ryzen 5600H	12th Gen Intel® Core (i5 12400)	12th Generation Intel® Core Processor(i7 12700)		Single Intel Xeon Gold Processor	Dual Intel Xeon Gold Processor
Storage	M.2 SSD 250GB	M.2 SSD 500GB	250GB M.2 SSD (System Driver) , 1TB M.2 SSD (Storage Driver)		1TB M.2 SSD	1TB M.2 SSD (System Driver) , 960GB U.2SSD (Storage Driver)
Graphics Card Model	Integrated Graphics	MPGT400	MPG2200	HPG4000	2x HPG4000 1xMPGT400 1xSync Card	3x HPG4000 1xMPGT400 1xSync Card
Loading Capacity	4096×2160@60Hz	2×4096×2160@60Hz	4×4096×2160@60Hz		8× 4096×2160@60Hz	12×4096×2160@60Hz
Decoding Capacity	1 layer of 4K@60 or 4 layers of 2K@60	1 layer of 8K@30 or 2 layers of 4K@60	1 layer of 8K@30 or 2 layers of 4K@60	1 layer of 8K@60 or 4 layers of 4K@60	2 layers of 8K@60 or 8 layers of 4K@60	3 layers of 8K@60 or 16 layers of 4K@60
Program Quantity	Unlimited	Unlimited	Unlimited		Unlimited
Layer Quantity	Up to 4 layers and 1 audio layer	Up to 8 layers and 1 audio layer	Up to 12 layers and 1 audio layer, with supported for expandability		12 layers (24 layers with 2 graphics cards, 36 layers with 3 graphics cards, 48 layers with 4 graphics cards) and 1 audio layer, with supported for expandability
EDID Lock	√	√	√		√
Cascading	√	√	√		√
Frame Synchronization Splicing	/	/	/		√
Dual-machine Backup	/	/	/		√
Ipad Control	√	√	√		√
Protocol Control	√	√	√		√
Operation System	Windows 10 Enterprise LTSC	Windows 10 Enterprise LTSC	Windows 10 Enterprise LTSC		Windows 10 Enterprise LTSC
Software	Kompass FX1	Kompass FX2	Kompass FX3 (Dongle Included)		Kompass FX3 (Dongle Included)
Media Type	Video, audio, picture, subtitle, PPT, web page, NDI, streaming media, collection playback, digital clock	Video, audio, picture, subtitle, PPT, web page, NDI, streaming media, collection playback, capture card, digital clock	Video, audio, picture, subtitle, PPT, web page, NDI, streaming media, collection playback, capture card, digital clock, sequence frame		Video, audio, picture, subtitle, PPT, web page, NDI, streaming media, collection playback, capture card, digital clock, sequence frame

ET1S-G

V1.0.0

ET4S-G

V1.1.0

ET16S-G

V1.1.0

Kompass FX3

V3.10.0

Kompass FX2

V3.10.0

Kompass FX1

V.3.10.0
